McCormick-Deering W-14 Tractors
 |
|
Power: 19 hp[B]
Date of manufacture : 1938 - 1939 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Factory: | Chicago, Illinois, USA
|
| Total built: | 1,163
|
| Variants |
| F-14: | Farmall row-crop version
|
| O-14: | orchard
|
| I-14: | industrial
|
| McCormick-Deering W-14 Power |
| Drawbar (claimed): | 14.8 hp
11.0 kW
|
| Belt (claimed): | 17.4 hp
13.0 kW
|
| Plows: | 1
|
| McCormick-Deering W-14 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Cab: | Open operator station.
|
| Transmission: | 3-speed gear
|
| Photos |

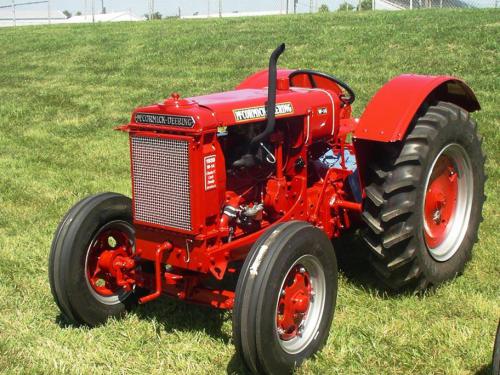

| | McCormick-Deering W-14 photos... |
| Power Take-off (PTO) |
| Rear RPM: | 550
|
| Dimensions & Tires |
| Wheelbase: | 60 inches
152 cm
|
| Weight: | 3,300 lbs
1496 kg
|
| Front tire: | 5.50x16
|
| Rear tire: | 9.00x24
|
| Full dimensions and tires ... |
| W-14 Serial Numbers |
| Location: | Front of fuel tank support.
|
| 1938: | 4134
|
| 1939: | 4610
|
| Final: | 5296
|
| 1938: | 3261 (O-14, Fairway 14)
|
| 1939: | 3882 (O-14, Fairway 14)
|
| Final: | 4287 (O-14, Fairway 14)
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 12.4 inches
31 cm
|
| Width: | 6.25 inches
15 cm
|
| RPM: | 794
|
|
