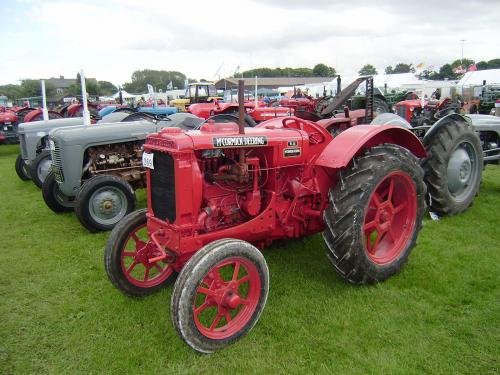

McCormick-Deering W-12 Tractors
 |
|
Power: 16 hp[B]
Date of manufacture : 1934 - 1938 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Factory: | Chicago, Illinois, USA
|
| Total built: | 3,633
|
| Variants |
| F-12: | row-crop
|
| W-12: | standard
|
| O-12: | orchard
|
| I-12: | industrial
|
| McCormick-Deering W-12 Power |
| Drawbar (claimed): | 10 hp
7.5 kW
|
| Belt (claimed): | 15 hp
11.2 kW
|
| Plows: | 1
|
| Drawbar (tested): | 13.52 hp
10.1 kW
|
| Belt (tested): | 17.65 hp
13.2 kW
|
| McCormick-Deering W-12 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmission: | 3-speed unsynchronized gear
|
| Photos |
| | McCormick-Deering W-12 photos... |
| Power Take-off (PTO) |
| Rear RPM: | 567
|
| Dimensions & Tires |
| Wheelbase: | 60 inches
152 cm
|
| Weight: | 2900 lbs
1315 kg
|
| Front tire: | 22.50x3.50
|
| Rear tire: | 42x8
|
| Full dimensions and tires ... |
| W-12 Serial Numbers |
| 1934: | 503
|
| 1935: | 1356
|
| 1936: | 2031
|
| 1937: | 2769
|
| 1938: | 3799
|
| Final: | 4133
|
| 1934: | 512 (I-12)
|
| 1935: | 775 (I-12)
|
| 1936: | 975 (I-12)
|
| 1937: | 1525 (I-12)
|
| 1938: | 2495 (I-12)
|
| Final: | 2703 (I-12)
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 13.25 inches
33 cm
|
| Width: | 6.25 inches
15 cm
|
| RPM: | 787
|
| Speed: | 2730 ft/min
832.10 meters/min
|
|
