Navigation: Home > Minneapolis-Moline > G1050

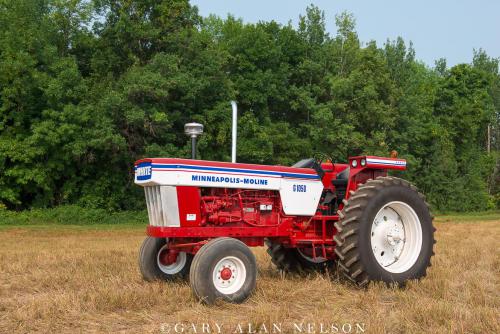

Minneapolis-Moline G1050 Tractors
 |
|
Power: 122 hp[P]
Date of manufacture : 1969 - 1971 |
| Production |
| Manufacturer: | Minneapolis-Moline (a part of White)
|
| Type: | Row-Crop tractor
|
| Factory: | Minneapolis, Minnesota, USA
|
| Original price: | $11,800 (1971 )
|
| Minneapolis-Moline G1050 Power |
| Drawbar (claimed): | 102 hp
76.1 kW
|
| PTO (claimed): | 110 hp
82.0 kW
|
| Drawbar (tested): | 100.99 hp
75.3 kW
|
| PTO (tested): | 110.78 hp
82.6 kW
|
| Minneapolis-Moline G1050 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | disc
|
| Cab: | Open operator station. Cab optional with heat and A/C
|
| Transmissions: | 10-speed two-speed power shift
|
| | 15-speed three-speed power shift
|
| Hydraulics |
| Type: | closed
|
| | open optional
|
| Valves: | 2 or 3
|
| Tractor hitch |
| Rear Type: | III/II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 1000 (1.375)
|
| | 540/1000 (1.375)
|
| Dimensions & Tires |
| Row-crop Wheelbase: | 104.5 inches
265 cm
|
| Standard Wheelbase: | 103.75 inches
263 cm
|
| Weight: | 10700 to 11250 pounds
|
| Front tire: | 7.50-16
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| G1050 Serial Numbers |
| 1971: | 43-100-416
|
| Final: | 43-100-544
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| LP-gas Batteries: | 1
|
| Diesel Batteries: | 2
|
| Battery volts: | 12
|
|
