Minneapolis-Moline G1350 Tractors
 |
|
Power: 156 hp[P]
Date of manufacture : 1969 - 1971 |
| Production |
| Manufacturer: | Minneapolis-Moline (a part of White)
|
| Type: | Row-Crop tractor
|
| Factory: | Minneapolis, Minnesota, USA
|
| Original price: | $13,700 (1971 )
|
| Minneapolis-Moline G1350 Power |
| Diesel PTO (claimed): | 141 hp
105.1 kW
|
| LP-gas PTO (claimed): | 135 hp
100.7 kW
|
| Drawbar (tested): | 116.41 hp
86.8 kW
|
| PTO (tested): | 141.44 hp
105.5 kW
|
| Minneapolis-Moline G1350 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | outboard planetary
|
| Steering: | power
|
| Brakes: | dry disc
|
| Cab: | Open operator station. Cab optional with heat and air-conditioning.
|
| Transmission: | 10-speed two-speed power shift
|
| Photos |

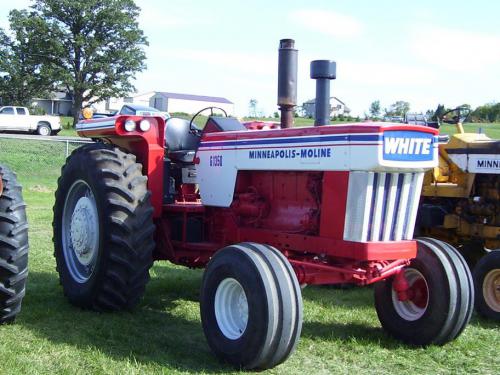

| | Minneapolis-Moline G1350 photos... |
| Hydraulics |
| Type: | open center
|
| | closed center*Optional
|
| Pressure: | 2000 psi
137.9 bar
|
| Valves: | 2 or 3
|
| Pump flow: | 20 gpm
75.7 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 1000 (1.375)
|
| | 540/1000 (1.375)
|
| Engine RPM: | 540@1800
1000@1800
|
| Dimensions & Tires |
| Wheelbase: | 104.25 inches
264 cm
|
| Weight: | 12050 lbs
5465 kg
|
| Front tire: | 7.50x18
|
| Rear tire: | 18.4x38
|
| Full dimensions and tires ... |
| G1350 Serial Numbers |
| 1971: | 43-300-043
|
| Final: | 43-300-253
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
