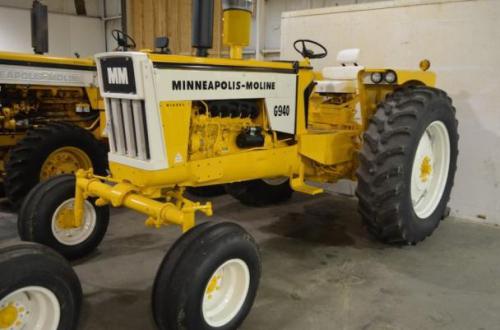

Minneapolis-Moline G940 Tractors
 |
|
Power: 102 hp[P]
Date of manufacture : 1971 - 1973 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Type: | Row-Crop tractor
|
| Original price: | $13,000 (1975 )
|
| Minneapolis-Moline G940 Power |
| PTO (claimed): | 92 hp
68.6 kW (gas)
|
| | 98 hp
73.1 kW (diesel)
|
| Drawbar (tested): | 82.65 hp
61.6 kW
|
| PTO (tested): | 98.60 hp
73.5 kW
|
| Minneapolis-Moline G940 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | differential hydraulic disc
|
| Cab: | Open operator station. Optional two-post ROPS and cab.
|
| Transmissions: | 6-speed gear
|
| | 18-speed partial power shift
|
| Hydraulics |
| Type: | closed center
|
| Pump flow: | 20 gpm
75.7 lpm
|
| Tractor hitch |
| Rear Type: | I/II
|
| | II/III (optional)
|
| Rear lift: | 4,000 lbs
1814 kg
|
| | 6,000 lbs
2721 kg (Cat 3)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| | 540/1000
|
| | 1000
|
| Engine RPM: | 984@2400
|
| Dimensions & Tires |
| 2WD Wheelbase: | 103 inches
261 cm
|
| 4WD Wheelbase: | 86.25 inches
219 cm
|
| Weight: | 11,150 lbs
5057 kg
|
| Front tire: | 11L-15
|
| Rear tire: | 23.1-34
|
| Full dimensions and tires ... |
| G940 Serial Numbers |
| 1969: | 220-640
|
| 1970: | 221-099
|
| 1971: | 225-508
|
| 1972: | 231-366
|
| 1973: | 236-585
|
| 1974: | 247-436
|
| 1975: | 255-727
|
| Final: | 255-785
|
how to read serial numbers...
| |
