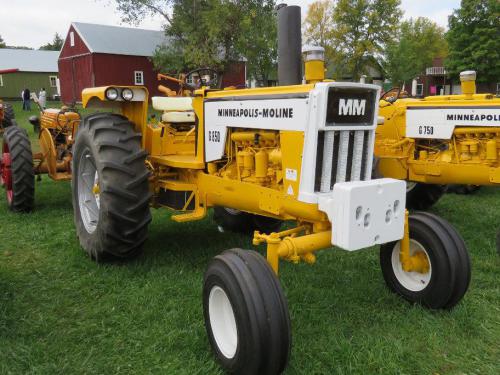

Minneapolis-Moline G850 Tractors
 |
|
Power: 95 hp[P]
Date of manufacture : 1971 - 1972 |
| Production |
| Manufacturer: | Minneapolis-Moline (a part of White)
|
| Type: | Row-Crop tractor
|
| Original price: | $11,500 (1975 )
|
| Variants |
| Minneapolis-Moline G850 |
| Minneapolis-Moline G850 Power |
| PTO (claimed): | 86 hp
64.1 kW
|
| Drawbar (tested): | 73.87 hp
55.1 kW
|
| PTO (tested): | 86.93 hp
64.8 kW
|
| Minneapolis-Moline G850 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | differential hydraulic dry disc
|
| Cab: | Open operator station. Optional two-post ROPS and cab.
|
| Transmissions: | 6-speed gear
|
| | 18-speed partial power shift
|
| Photos |
| | Minneapolis-Moline G850 photos... |
| Capacity |
| Fuel: | 35 gal
132.5 L
|
| Hydraulic system: | 6.75 gal
25.5 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 6.75 gal
25.5 L
|
| Pump flow: | 20 gpm
75.7 lpm
|
| Tractor hitch |
| Rear Type: | I/II
|
| | II/III*Optional
|
| Rear lift: | 4,000 lbs
1814 kg
|
| | 6,000 lbs
2721 kg (Cat 3)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| | 1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 103 inches
261 cm
|
| 4WD Wheelbase: | 86.25 inches
219 cm
|
| Weight: | 9,600 lbs
4354 kg
|
| Front tire: | 7.50-15
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| G850 Serial Numbers |
| 1970: | 221-603
|
| 1971: | 226-445
|
| 1972: | 231-415
|
| 1973: | 238-136
|
| 1974: | 245-667
|
| 1975: | 257-515
|
| Final: | 260-346
|
how to read serial numbers...
| |
