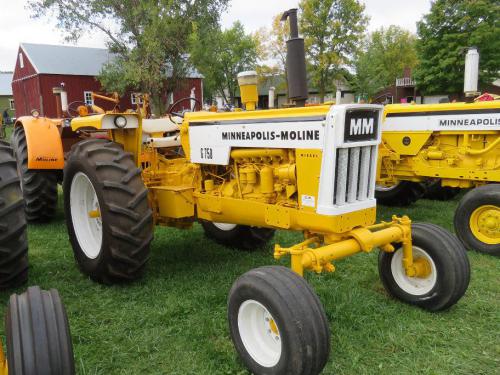

Minneapolis-Moline G750 Tractors
 |
|
Power: 77 hp[P]
Date of manufacture : 1969 - 1975 |
| Production |
| Manufacturer: | Minneapolis-Moline (a part of White)
|
| Type: | Row-Crop tractor
|
| Original price: | $10,000 (1975 )
|
| Minneapolis-Moline G750 Power |
| PTO (claimed): | 70 hp
52.2 kW
|
| Drawbar (tested): | 60.07 hp
44.8 kW
|
| PTO (tested): | 70.57 hp
52.6 kW
|
| Minneapolis-Moline G750 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | disc
|
| Cab: | Open operator station. Cab optional with available heater.
|
| Transmissions: | 18-speed partial power shift
|
| | 6-speed helical gear
|
| Photos |
| | Minneapolis-Moline G750 photos... |
| Capacity |
| Fuel: | 27.5 gal
104.1 L
|
| Hydraulic system: | 14 gal
53.0 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 14 gal
53.0 L
|
| Valves: | 2 to 4
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | lower-link draft control
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| | 1000
|
| | 540/1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 99.25 inches
252 cm
|
| 4WD Wheelbase: | 82.125 inches
208 cm
|
| Weight: | 7500 to 8000 pounds
|
| Front tire: | 7.50-16
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| G750 Serial Numbers |
| Location: | Serial number plate below instrument panel.
|
photo of G750 serial number
| | 1969: | 218-025
|
| 1970: | 222-600
|
| 1971: | 222-761
|
| 1972: | 231-772
|
| 1973: | 236-586
|
| 1974: | 244-735
|
| 1975: | 257-700
|
| Final: | 263-340
|
how to read serial numbers...
| |
