Nuffield 10/60 Tractors

Nuffield 10/60
Power: 61 hp[P]
Date of manufacture :
1964 - 1967
Production
Manufacturer:Nuffield
Type:Utility tractor
Nuffield 10/60 Power
PTO (claimed):55 hp
41.0 kW
Drawbar (tested):45.95 hp
34.3 kW
PTO (tested):55.36 hp
41.3 kW
Nuffield 10/60 Engine
Mechanical
Chassis:4x2 2WD
Differential lock:mechanical
Steering:manual
 power assist optional
Brakes:independent mechanical disc
Cab:Open operator station.
Transmission:10-speed

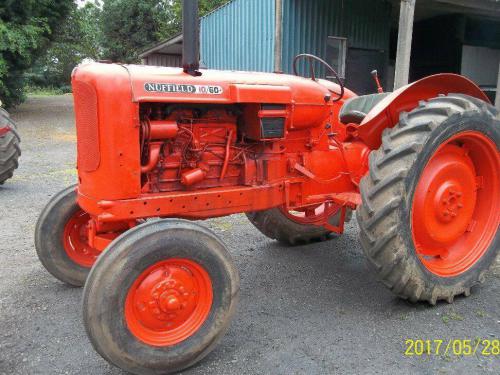

Photos
Nuffield 10/60 photos...
Hydraulics
Pressure:2000 psi
137.9 bar
Total flow:6 gpm
22.7 lpm
Tractor hitch
Rear Type:II/I
Rear lift (at ends):2,830 lbs
1283 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Weight:5,865 lbs
2660 kg
Front tire:7.50-16
Rear tire:16.9-30
Full dimensions and tires ...
