Navigation: Home > Satoh > S370

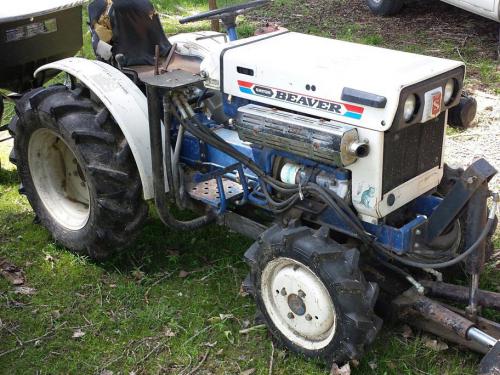

Satoh S370 Tractors

Satoh S370
Power: 15 hp
Date of manufacture :
1977 - 1984
Production
Manufacturer:Satoh
Type:Compact Utility tractor
Variants
S-370:2WD
S-370D:4WD
Satoh S370 Power
Engine (gross):15 hp
11.2 kW
Engine (net):13 hp
9.7 kW
PTO (claimed):12.2 hp
9.1 kW
Satoh S370 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (S-370D)
Differential lock:foot pedal
Steering:manual
Brakes:mechanical internal expanding shoe
Cab:Open operator station.
Transmission:6-speed unsymchronized gear
Photos
Satoh S370 photos...
Hydraulics
Pressure:1920 psi
132.4 bar
Total flow:3.84 gpm
14.5 lpm
Tractor hitch
Rear Type:0
Rear lift (at ends):1,274 lbs
577 kg
Power Take-off (PTO)
Rear PTO:transmission
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:48.23 inches
122 cm (2WD)
 49.80 inches
126 cm (4WD)
Weight:1035.3 to 1180.6 pounds
Front tire:4.00-9
Rear tire:8-16 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:26.5
Battery volts:12
