Satoh S550 Tractors

Satoh S550
Power: 18 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Satoh
Type:Compact Utility tractor
Factory:Japan
Satoh S550 Power
Engine:17 hp
12.7 kW
PTO (claimed):15.5 hp
11.6 kW
Satoh S550 Engine
Mechanical
Chassis:4x2 2WD
Final drives:spur gear
Steering:manual
Brakes:mechanical drum
Cab:Open operator station.
Transmission:6-speed gear

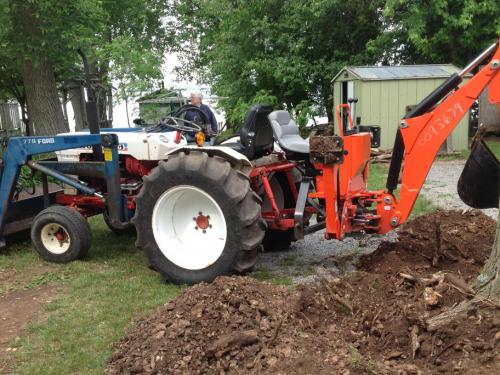

Photos
Satoh S550 photos...
Tractor hitch
Rear Type:I
Rear lift:1102 lbs
499 kg
Power Take-off (PTO)
Rear RPM:540 (1.375)
Engine RPM:540@2120
Dimensions & Tires
Wheelbase:58.7 inches
149 cm
Weight:1429 lbs
648 kg
Front tire:4.00x12
Rear tire:8.3/8x24
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:35
Battery volts:12
