Navigation: Home > Steiger > Cougar III PT-270

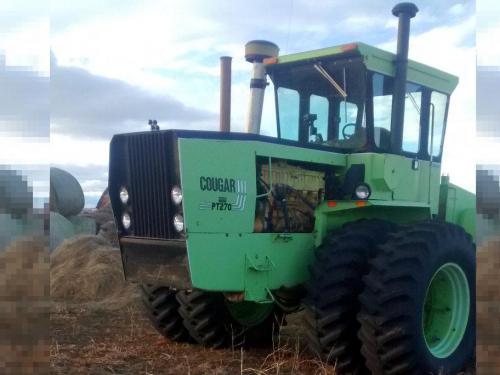

Steiger Cougar III PT-270 Tractors

Steiger Cougar III PT-270
Power: 270 hp
Date of manufacture :
1977 - 1981
Production
Manufacturer:Steiger
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
Original price:$87,000 (1981 )
Steiger Cougar III PT-270 Power
Engine:270 hp
201.3 kW
PTO (claimed):57 hp
42.5 kW *Power at 540 RPM
 105 hp
78.3 kW *Power at 1000 RPM
Steiger Cougar III PT-270 Engine
Mechanical
Chassis:4x4 articulated 4WD
Final drives:outboard planetary
Steering:articulated power
Brakes:hydraulic disc
Cab:Safari Cab standard with air-conditioning.
Transmission:20-speed constant mesh
Photos
Steiger Cougar III PT-270 photos...
Capacity
Fuel:225 gal
851.6 L
Hydraulic system:22 gal
83.3 L
Hydraulics
Type:open center
Capacity:22 gal
83.3 L
Pressure:2250 psi
155.1 bar
Valves:4 or 5
Pump flow:20 gpm
75.7 lpm
Tractor hitch
Rear Type:III*Optional
Power Take-off (PTO)
Rear PTO:independent*Optional
Clutch:hydrostatic-drive
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:132.5 inches
336 cm
Weight:28444 lbs
12902 kg
Front tire:18.4x34
Rear tire:18.4x34
Full dimensions and tires ...
Cougar III PT-270 Serial Numbers
1977:143-00001
1978:143-00082
1979:143-00154
1980:143-00211
1981:143-00236

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:90
Charging volts:12
Batteries:4
Battery CCA:475
Battery volts:12
