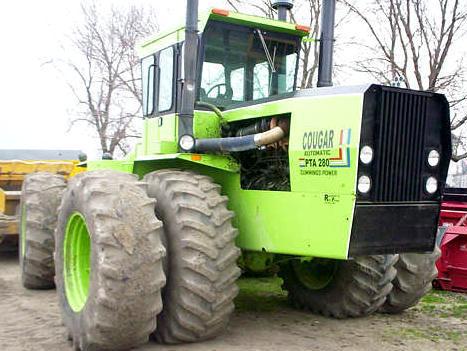

Steiger Cougar III PTA-280 Tractors
 |
|
Power: 280 hp
Date of manufacture : 1981 - 1983 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $103,000 (1983 )
|
| Steiger Cougar III PTA-280 Power |
| Engine: | 280 hp
208.8 kW
|
| Drawbar (claimed): | 225 hp
167.8 kW
|
| PTO (claimed): | 125 hp
93.2 kW
|
| Steiger Cougar III PTA-280 Engines |
| Mechanical |
| Chassis: | 4x4 articualted 4WD
|
| Final drives: | outboard planetary
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Safari Cab standard with air-conditioning.
|
| Transmission: | 10-speed power shift with torque converter
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 3 to 5
|
| Pump flow: | 28.6 gpm
108.3 lpm
|
| Tractor hitch |
| Rear Type: | III*Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 132.5 inches
336 cm
|
| Weight: | 27600 lbs
12519 kg
|
| Front tire: | 23.1x34
|
| Rear tire: | 23.1x34
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
|
