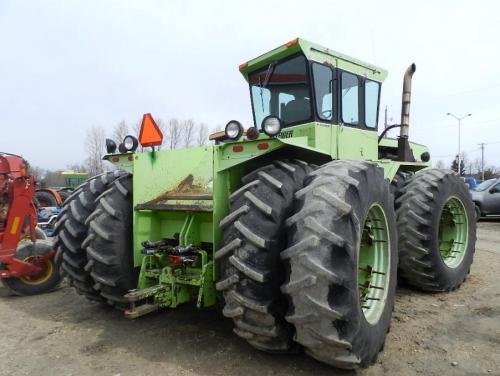

Steiger Cougar III ST-250 Tractors

Steiger Cougar III ST-250
Power: 250 hp
Date of manufacture :
1976 - 1983
Production
Manufacturer:Steiger
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
Original price:$50,000 (1983)
Steiger Cougar III ST-250 Power
Engine:250 hp
186.4 kW
Drawbar (tested):214.51 hp
160.0 kW
Steiger Cougar III ST-250 Engine
Mechanical
Chassis:4x4 articulated 4WD
Final drives:outboard planetary
Steering:hydrostatic power
Brakes:hydraulic dry disc
Cab:Safari Cab standard with heat and air-conditioning.
Transmissions:10-speed
 20-speed
Hydraulics
Type:open center
Pressure:2250 psi
155.1 bar
Valves:3 to 5
Pump flow:30.8 gpm
116.6 lpm
Tractor hitch
Rear Type:3 (optional)
Dimensions & Tires
Wheelbase:128 inches
325 cm
Weight:25,000 lbs
11340 kg
Front tire:23.1-34
Rear tire:23.1-34
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:90
Battery volts:12
