Navigation: Home > Steiger > Cougar III ST-270

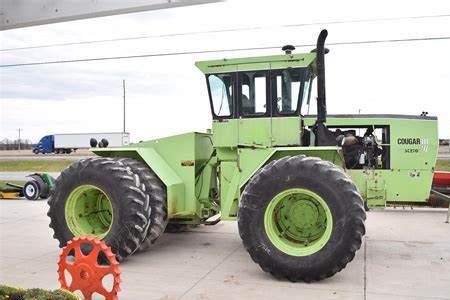

Steiger Cougar III ST-270 Tractors

Steiger Cougar III ST-270
Power: 270 hp
Date of manufacture :
1977 - 1981
Production
Manufacturer:Steiger
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
Original price:$78,000 (1981)
Steiger Cougar III ST-270 Power
Engine:270 hp
201.3 kW
Steiger Cougar III ST-270 Engine
Mechanical
Chassis:4x4 articulated 4WD
Final drives:outboard planetary
Steering:hydrostatic power
Brakes:hydraulic disc
Cab:Safari Cab standard with heat and air-conditioning.
Transmissions:10-speed
 20-speed
Hydraulics
Type:open center
Pressure:2250 psi
155.1 bar
Valves:4
Pump flow:29.2 gpm
110.5 lpm
Tractor hitch
Rear Type:3 (optional)
Dimensions & Tires
Wheelbase:128 inches
325 cm
Weight:26,250 lbs
11907 kg
Front tire:23.1-34
Rear tire:23.1-34
Full dimensions and tires ...
Cougar III ST-270 Serial Numbers
1977:105-00330
1978:105-00477
1979:105-00658
1980:105-00872
1981:105-0100

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:90
Batteries:2
Battery volts:12
Battery AH:208
Battery Group:8D
