Steiger Panther III ST-310 Tractors
 |
|
Power: 310 hp
Date of manufacture : 1976 - 1983 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $98,700 (1983 )
|
| Steiger Panther III ST-310 Power |
| Engine: | 310 hp
231.2 kW
|
| Drawbar (tested): | 246.79 hp
184.0 kW
|
| Steiger Panther III ST-310 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | outboard planetary
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic disc
|
| Cab: | Safari Cab standard with heat and air-conditioning.
|
| Transmissions: | 10-speed
|
| | 20-speed
|
| Photos |

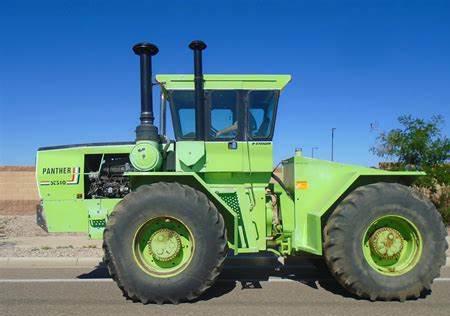

| | Steiger Panther III ST-310 photos... |
| Capacity |
| Fuel: | 267 gal
1010.6 L
|
| Hydraulic system: | 33 gal
124.9 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 33 gal
124.9 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 3 to 5
|
| Pump flow: | 28.6 gpm
108.3 lpm
|
| Tractor hitch |
| Rear Type: | 3
|
| Dimensions & Tires |
| Wheelbase: | 128 inches
325 cm
|
| Weight: | 26,700 lbs
12111 kg
|
| Front tire: | 23.1-34
|
| Rear tire: | 23.1-34
|
| Full dimensions and tires ... |
| Panther III ST-310 Serial Numbers |
| 1976: | 107-00001
|
| 1977: | 107-00314
|
| 1978: | 107-00463
|
| 1979: | 107-00612
|
| 1980: | 107-00887
|
| 1981: | 107-01079
|
| 1982: | 107-01501
|
| 1983: | 107-02501
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 90
|
| Batteries: | 2
|
| Battery volts: | 12
|
| Battery AH: | 208
|
| Battery Group: | 8D
|
|
