| Production |
| Manufacturer: | Steyr
|
| Variants |
| 8090: | 2WD
|
| 8090A: | 4WD
|

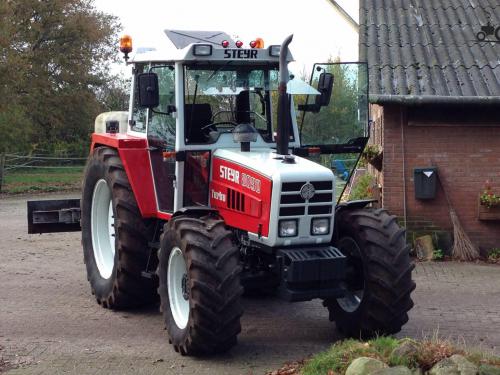

| Steyr 8090 Power |
| Engine: | 80 hp
59.7 kW
|
| PTO (claimed): | 77.5 hp
57.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (8090A)
|
| Steering: | hydrostatic power
|
| Brakes: | drum
|
| Trailer brakes: | air brakes optional
|
| Cab: | Steyr SK2 cab. Twin Cab optional with upgraded interior and extra size.
|
| Transmissions: | 16-speed synchronized
|
| | 16-speed partial power shift
|
| | 32-speed
|
| Hydraulics |
| Pressure: | 2,538 psi
175.0 bar
|
| Valves: | up to 3
|
| Total flow: | 10.3 gpm
39.0 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift: | 9,937 lbs
4507 kg
|
| Front lift: | 2,765 lbs
1254 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/1000
|
| | 540/750/1000/1250
|
| Mid RPM: | 1000
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 86.4 inches
219 cm (2WD)
|
| | 89.8 inches
228 cm (4WD)
|
| Weight: | 6945 to 7650 pounds
|
| Front tire: | 9.00-16
|
| Rear tire: | 16.9R34
|
| Full dimensions and tires ... | |
