Steyr 9115 Tractors

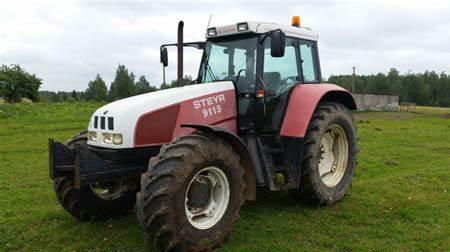

Steyr 9115
Power: 115 hp
Date of manufacture :
1995 - 2003
Production
Manufacturer:Steyr
Type:Row-Crop tractor
Variants
CaseIH CS 120
Steyr 9115 Power
Engine:115 hp
85.8 kW
PTO (claimed):101.9 hp
76.0 kW
Steyr 9115 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:disc
Cab:Cab standard.
Transmissions:24-speed synchronized
 40-speed creeper
Photos
Steyr 9115 photos...
Hydraulics
Total flow:21.1 gpm
79.9 lpm
 30.4 gpm
115.1 lpm optional
Tractor hitch
Rear Type:III/II
Rear lift:19470 lbs
8831 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
 1000 (1.75)*Optional
Engine RPM:540@2210
540E@1608
1000@2200
1000E@1600
Dimensions & Tires
Wheelbase:110.1 inches
279 cm
Weight:11563 lbs
5244 kg
Front tire:16.9R24
Rear tire:18.4R38
Full dimensions and tires ...
