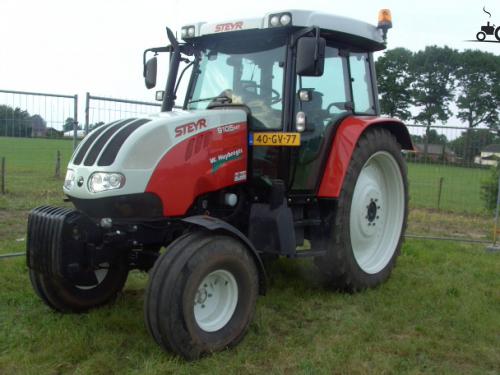

Steyr 9105MT Tractors

Steyr 9105MT
Power: 101 hp
Date of manufacture :
2008 - 2011
Production
Manufacturer:Steyr
Type:Utility tractor
Steyr 9105MT Power
Engine (gross):101 hp
75.3 kW
Engine (max):102 hp
76.1 kW
Steyr 9105MT Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Trailer brakes:pneumatic*Optional
 hydraulic*Optional
Cab:Cab standard with heater. Available air-conditioning.
Transmission:16-speed
Hydraulics
Pressure:2538 psi
175.0 bar
Valves:2 or 3
Pump flow:13.2 gpm
50.0 lpm
 22.7 gpm
85.9 lpm *With optional triple pump.
Steering flow:9 gpm
34.1 lpm
Tractor hitch
Rear lift:10803 lbs
4900 kg
Front lift:5511 lbs
2499 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:430/540/540E/1000
Engine RPM:430@2130
540@2045
540E@1506
1000@2130
Front PTO:independent*Optional
Front RPM:1000
Dimensions & Tires
Wheelbase:97.7 inches
248 cm
Weight:9215 lbs
4179 kg
Front tire:14.9R24
Rear tire:18.4R34
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
