| Production |
| Manufacturer: | Steyr
|
| Type: | Utility tractor
|

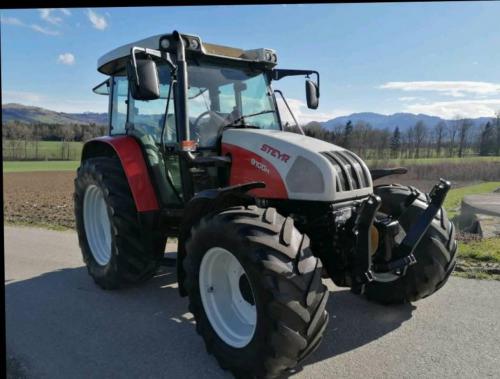

| Steyr 9100M Power |
| Engine: | 97 hp
72.3 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Supercomfort cab
|
| Transmissions: | 16-speed
|
| | 32-speed
|
| Hydraulics |
| Pressure: | 2538 psi
175.0 bar
|
| Valves: | 4
|
| Total flow: | 13.2 gpm
50.0 lpm
|
| | 22.7 gpm
85.9 lpm *Optional
|
| Tractor hitch |
| Rear lift: | 10,800 lbs
4898 kg
|
| Front lift: | 6,698 lbs
3038 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 430/540/540E/1000
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 97.7 inches
248 cm
|
| Weight: | 8,708 lbs
3949 kg
|
| Front tire: | 14.9R24
|
| Rear tire: | 18.4R34
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
