Versatile 535 Tractors

Versatile 535
Power: 535 hp
Date of manufacture :
2008 - 2011
Production
Manufacturer:Versatile (a part of Rostselmash)
Type:Four-wheel Drive (4WD) tractor
Factory:Winnipeg, Manitoba, Canada
Versatile 535 Power
Engine:535 hp
398.9 kW
Versatile 535 Engine
Mechanical
Chassis:4x4 articulated 4WD
Final drives:outboard planetary
Steering:hydrostatic power
Brakes:dry caliper
Trailer brakes:hydraulic (optional)
Cab:Cab standard with air-conditioning.
Transmissions:12-speed partiallly synchronized
 16-speed full power shift

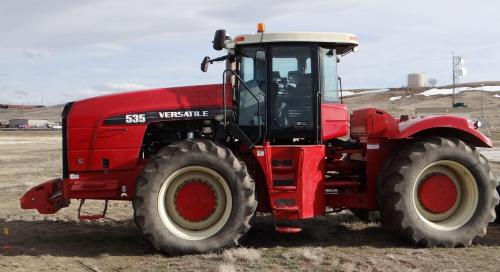

Photos
Versatile 535 photos...
Capacity
Fuel:350 gal
1324.8 L
Hydraulic system:30 gal
113.6 L
Hydraulics
Type:closed center load sensing (CCLS)
Capacity:30 gal
113.6 L
Pressure:2900 psi
200.0 bar
Valves:4 to 6 (mechanical)
 4 to 8 (electro-hydraulic)
Pump flow:55 gpm
208.2 lpm
 80 gpm
302.8 lpm (optional)
Dimensions & Tires
Wheelbase:154 inches
391 cm
Weight:42000 lbs
19051 kg
Front tire:710/70R42
Rear tire:710/70R42
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:160
Charging volts:12
Batteries:3
Battery CCA:950
Battery volts:12
