Versatile 570 Tractors

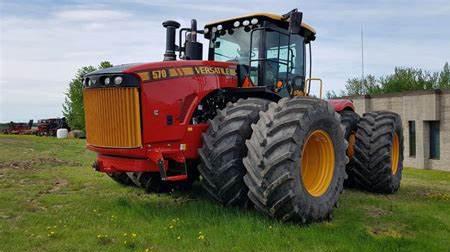

Versatile 570
Power: 570 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Versatile (a part of Rostselmash)
Type:Four-wheel Drive (4WD) tractor
Factory:Winnipeg, Manitoba, Canada
Variants
570:wheeled tractor
570DT:crawler
Versatile 570 Power
Engine:570 hp
425.0 kW
PTO (claimed):320 hp
238.6 kW
Versatile 570 Engine
Mechanical
Chassis:4x4 articulated 4WD
Final drives:outboard planetary
Brakes:hydraulic disc
Cab:Cab standard with air-conditioning.
Transmission:16-speed full power shift
Hydraulics
Type:closed center load sensing
Pressure:2900 psi
200.0 bar
Valves:4 to 6
Pump flow:53 gpm
200.6 lpm
 106 gpm
401.2 lpm *Optional Hi-Flow
Tractor hitch
Rear Type:IV
Power Take-off (PTO)
Rear RPM:1000 (1.375)
Dimensions & Tires
Wheelbase:154 inches
391 cm
Weight:42000 lbs
19051 kg
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:200
Charging volts:12
Batteries:3
Battery CCA:1000
Battery volts:12
