| Production |
| Manufacturer: | Versatile
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Winnipeg, Manitoba, Canada
|
| Original price: | $62,000 (1986 )
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydraulic power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 12-speed constant mesh
|
| | 15-speed partially synchronized
|
| | 12-speed full power shift
|
| Photos |

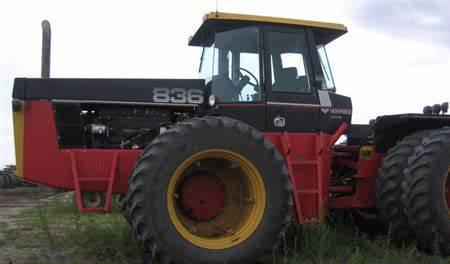

| | Versatile 836 photos... |
| Capacity |
| Fuel: | 246 gal
931.1 L
|
| Hydraulic system: | 15.3 gal
57.9 L
|
| Hydraulics |
| Type: | closed center load sensing
|
| Capacity: | 15.3 gal
57.9 L
|
| Valves: | 4 to 5
|
| Pump flow: | 25.2 gpm
95.4 lpm
|
| Steering flow: | 25.9 gpm
98.0 lpm
|
| Steering press.: | 2300 psi
158.6 bar
|
| Tractor hitch |
| Rear Type: | III/IVN
|
| Rear lift (at 24"/610mm): | 21,700 lbs
9843 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 130 inches
330 cm
|
| Weight: | 24,280 lbs
11013 kg
|
| Front tire: | 18.4-38
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 836 Serial Numbers |
| Location: | Serial number plate on the cab door post.
|
| 1985: | 836 85 215025
|
| 1986: | 836 86 270376
|
| Final: | 836 86 270425
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 90
|
| Batteries: | 4
|
| Battery CCA: | 625
|
| Battery volts: | 12
|
|
