| Production |
| Manufacturer: | Versatile
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Winnipeg, Manitoba, Canada
|
| Original price: | $113,000 (1982 )
|
| Versatile 950 Power |
| Engine: | 348 hp
259.5 kW
|
| Drawbar (claimed): | 300 hp
223.7 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | outboard planetary
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab with air-conditioning.
|
| Transmission: | 12-speed gear
|
| Photos |

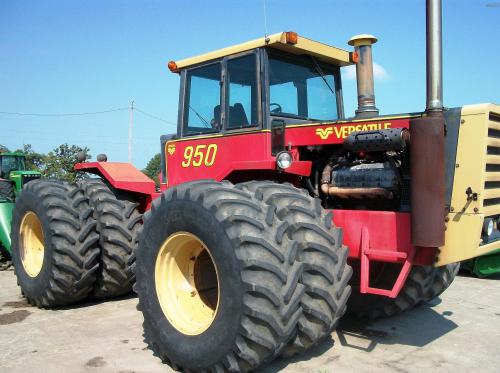

| | Versatile 950 photos... |
| Capacity |
| Fuel: | 185 gal
700.2 L
|
| Hydraulic system: | 18.6 gal
70.4 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 18.6 gal
70.4 L
|
| Pressure: | 2000 psi
137.9 bar
|
| Valves: | 3
|
| Pump flow: | 24.6 gpm
93.1 lpm
|
| Steering flow: | 27 gpm
102.2 lpm
|
| Tractor hitch |
| Rear Type: | III*Optional
|
| Control: | position and depth control
|
| Rear lift (at ends): | 18270 lbs
8287 kg
|
| Rear lift (at 24"/610mm): | 12370 lbs
5611 kg
|
| Dimensions & Tires |
| Wheelbase: | 130 inches
330 cm
|
| Weight: | 18045 to 31000 pounds
|
| Front tire: | 24.5x32
|
| Rear tire: | 24.5x32
|
| Full dimensions and tires ... |
| 950 Serial Numbers |
| Location: | Serial number plate on the cab door post.
|
| 1977: | 950 77 110301
|
| 1978: | 950 78 110676
|
| 1979: | 950 79 110801
|
| 1980: | 950 80 110851
|
| 1981: | 950 81 111051
|
| 1982: | 950 82 111201
|
| Final: | 950 82 111269
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 75
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
