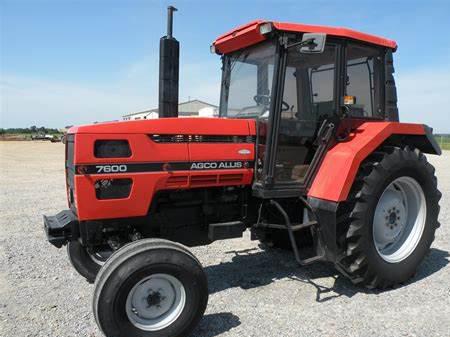

AGCO Allis 7600 Tractors

AGCO Allis 7600
Power: 95 hp
Date of manufacture :
1991 - 1996
Production
Distributor:AGCO Allis (a part of AGCO)
Manufacturer:SLH
Type:Row-Crop tractor
Factory:Italy
Original price:$36,000 (1996 )
AGCO Allis 7600 Power
Engine:95.2 hp
71.0 kW
PTO (claimed):89.25 hp
66.6 kW
AGCO Allis 7600 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:mechanical
Steering:power
Brakes:hydraulic wet disc
Cab:Four-post ROPS. Cab optional with air-conditioning.
Transmission:24-speed synchromesh
Capacity
Fuel:31.7 gal
120.0 L
Hydraulic system:23.1 gal
87.4 L
Hydraulics
Type:open center
Capacity:23.1 gal
87.4 L
Pressure:2610 psi
180.0 bar
Valves:2
Pump flow:16.9 gpm
64.0 lpm
Tractor hitch
Rear Type:II/I
Control:lower link draft control
Rear lift (at ends):10141 lbs
4599 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540/1000 (1.375)
Engine RPM:540@1957
1000@2125
Dimensions & Tires
2WD Wheelbase:104.6 inches
265 cm
4WD Wheelbase:104 inches
264 cm
Weight:8179 to 9788 pounds
Front tire:10.00-16
2WD Rear tire:16.9R34
Full dimensions and tires ...
7600 Serial Numbers
Location:Serial number plate on the right side of the 7600 console.
1991:1001
1992:1178
1993:1193
1994:1255
1995:1359
1996:1417

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
ROPS Charging amps:55
Cab Charging amps:65
Battery volts:12
Battery AH:120
