AGCO Allis 7650 Tractors

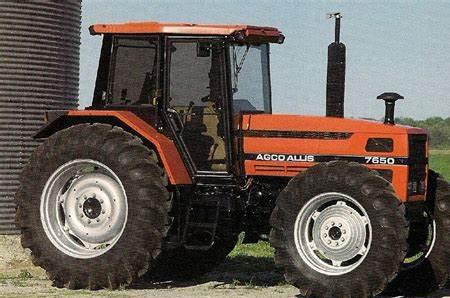

AGCO Allis 7650
Power: 146 hp
Date of manufacture :
1991 - 1994
Production
Distributor:AGCO Allis (a part of AGCO)
Manufacturer:SLH
Type:Row-Crop tractor
Factory:Italy
Original price:$65,000 (1994 )
AGCO Allis 7650 Power
Engine:146.7 hp
109.4 kW
PTO (claimed):128.4 hp
95.7 kW
AGCO Allis 7650 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:mechanical front and rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmission:24-speed synchromesh
Capacity
Fuel:55.5 gal
210.1 L
Hydraulic system:23.1 gal
87.4 L
Hydraulics
Type:open center
Capacity:23.1 gal
87.4 L
Pressure:2610 psi
180.0 bar
Valves:2
Pump flow:16.9 gpm
64.0 lpm
Tractor hitch
Rear Type:III/II
Control:lower link draft control
Rear lift (at ends):11905 lbs
5400 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540/1000 (1.375)
Engine RPM:540@2083
1000@2136
Dimensions & Tires
Wheelbase:114.2 inches
290 cm
Weight:12566 lbs
5699 kg
Front tire:16.9R30
Rear tire:20.8R38
Full dimensions and tires ...
7650 Serial Numbers
Location:Serial number plate on the right side of the 7650 console.
1991:1001
1992:1012

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:65
Battery volts:12
Battery AH:176
