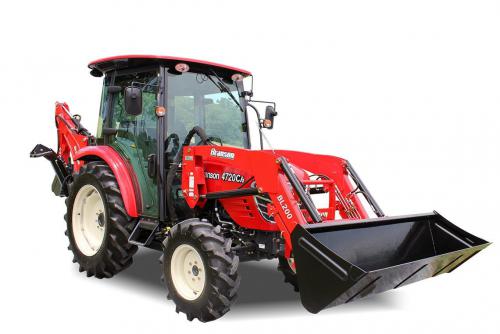

Branson 4720CH Tractors

Branson 4720CH
Power: 47 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Branson (a part of Kukje)
Type:Compact Utility tractor
Factory:South Korea
Branson 4720CH Power
Engine:47 hp
35.0 kW
PTO (claimed):42 hp
31.3 kW
Branson 4720CH Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmission:hydrostatic
Hydraulics
Pump flow:10.4 gpm
39.4 lpm
Steering flow:5 gpm
18.9 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift:3306 lbs
1499 kg
Rear Arms:telescopic lower links
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
Dimensions & Tires
Wheelbase:70.9 inches
180 cm
Weight:4442 lbs
2014 kg
Front tire:7x16
Rear tire:12.4x24
Electrical
Ground:negative
Charging system:alternator
Charging amps:70
Battery volts:12
