Navigation: Home > Branson > 4720h

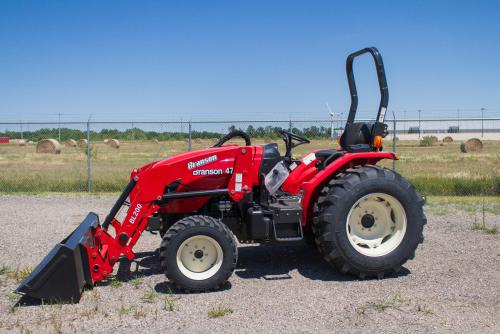

Branson 4720h Tractors

Branson 4720h
Power: 47 hp
Date of manufacture :
2005 - 2015
Production
Manufacturer:Branson
Variants
4720i:shuttle shift
4720h:hydrostatic
Branson 4720h Power
Engine (gross):47 hp
35.0 kW
Branson 4720h Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:ROPS. Canopy optional.
Transmission:hydrostatic
Hydraulics
Valves:0 to 2
Total flow:8.4 gpm
31.8 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):2,580 lbs
1170 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
Dimensions & Tires
Wheelbase:71 inches
180 cm
Weight:4,116 lbs
1867 kg
Front tire:8-18
Rear tire:12.4-28
Full dimensions and tires ...
