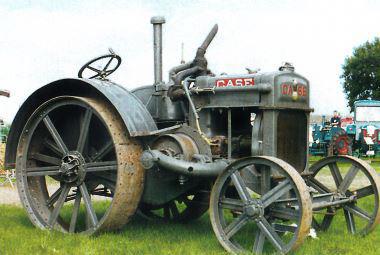

Case 10-18 Tractors

Case 10-18
Power: 20 hp[P]
Date of manufacture :
1918 - 1920
Production
Manufacturer:J.I. Case
Type:Standard-tread tractor
Factory:Racine, Wisconsin, USA
Total built:9,051
J.I. Case 10-18 Power
Drawbar (claimed):10 hp
7.5 kW
Belt (claimed):18 hp
13.4 kW
Plows:2 (14-inch)
Drawbar (tested):11.24 hp
8.4 kW
PTO (tested):18.1 hp
13.5 kW
Belt (tested):18.145 hp
13.5 kW
J.I. Case 10-18 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:2-speed gear
Dimensions & Tires
Weight:3,760 lbs
1705 kg
Front tire:30x6
Rear tire:42x9
Full dimensions and tires ...
Belt Pulley
Diameter:14.25 inches
36 cm
Width:5.25 inches
13 cm
RPM:1050
Speed:3,916 ft/min
1193.60 meters/min
