Case 15-27 Tractors

Case 15-27
Power: 30 hp[B]
Date of manufacture :
1919 - 1924
Production
Manufacturer:J.I. Case
Type:Standard-tread tractor
Factory:Racine, Wisconsin, USA
Total built:17,628
J.I. Case 15-27 Power
Drawbar (claimed):15 hp
11.2 kW
Belt (claimed):27 hp
20.1 kW
Plows:3
Drawbar (tested):21.81 hp
16.3 kW
Belt (tested):31.23 hp
23.3 kW
J.I. Case 15-27 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station. Optional canopy.
Transmission:2-speed gear

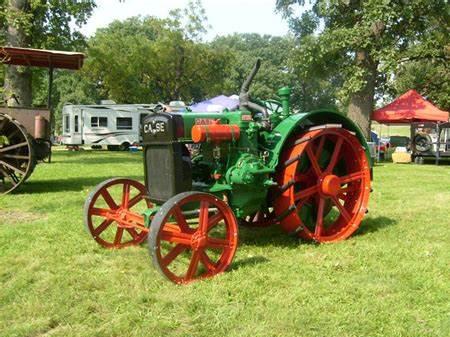

Photos
J.I. Case 15-27 photos...
Power Take-off (PTO)
Rear PTO:transmission (optional)
Rear RPM:540
Dimensions & Tires
Weight:6,460 lbs
2930 kg
Front tire:32x6
Rear tire:52x14
Full dimensions and tires ...
Belt Pulley
Diameter:16 inches
40 cm
Width:6.5 inches
16 cm
RPM:900
Speed:3,762 ft/min
1146.66 meters/min
