Navigation: Home > Case > 18-32

Case 18-32 Tractors

Case 18-32
Power: 35 hp[B]
Date of manufacture :
1924 - 1927
Production
Manufacturer:J.I. Case
Type:Standard-tread tractor
Factory:Racine, Wisconsin, USA
J.I. Case 18-32 Power
Drawbar (claimed):18 hp
13.4 kW
Belt (claimed):32 hp
23.9 kW
Plows:3
Drawbar (tested):24.52 hp
18.3 kW
Belt (tested):36.73 hp
27.4 kW
J.I. Case 18-32 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:2-speed gear

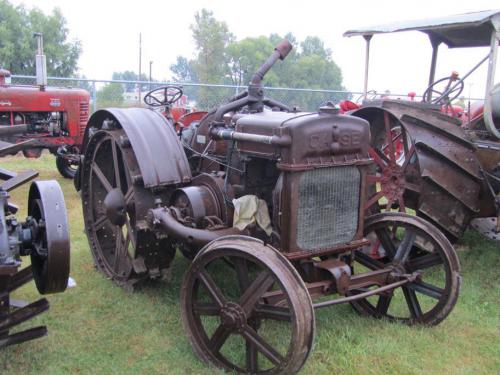

Photos
J.I. Case 18-32 photos...
Power Take-off (PTO)
Rear RPM:540
Dimensions & Tires
Weight:6,500 lbs
2948 kg
Rear tire:52x14
Full dimensions and tires ...
18-32 Serial Numbers
Location:Left rear fender.
photo of 18-32 serial number

Belt Pulley
Diameter:16 inches
40 cm
Width:7.5 inches
19 cm
RPM:1000
Speed:4,180 ft/min
1274.06 meters/min
