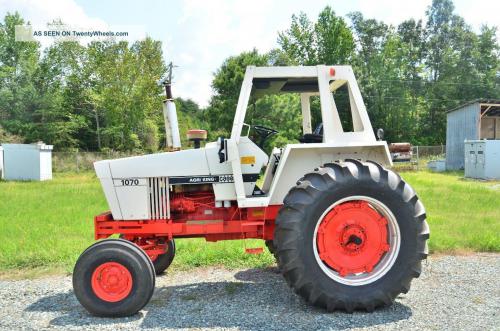

Case 1070 Tractors

Case 1070
Power: 112 hp[P]
Date of manufacture :
1970 - 1978
Production
Manufacturer:J.I. Case
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Total built:7,561
J.I. Case 1070 Power
Drawbar (claimed):85 hp
63.4 kW
PTO (claimed):101 hp
75.3 kW
Drawbar (tested):90.99 hp
67.9 kW
PTO (tested):108.10 hp
80.6 kW
J.I. Case 1070 Engine
Mechanical
Chassis:4x2 2WD
Steering:power
Brakes:differential hydraulic dry disc
Cab:Cab optional
Transmissions:8-speed unsynchronized gear
 12-speed partial power shift
Photos
J.I. Case 1070 photos...
Hydraulics
Valves:2
Pump flow:16 gpm
60.6 lpm
Tractor hitch
Rear Type:II
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1.375)
 540/1000 (1.375)
Engine RPM:540@2000
1000@2000
Dimensions & Tires
Wide-front Wheelbase:108 inches
274 cm
Tricycle Wheelbase:101 inches
256 cm
Weight:10310 lbs
4676 kg
Front tire:10.00-16
Rear tire:18.4-34
Full dimensions and tires ...
1070 Serial Numbers
Location:Plate on instrument panel
1970:8650001
1971:8674001
1972:8691801
1973:8712001
1974:8736601
1975:8770001
1976:8797501
1977:8809950
1978:8830001

how to read serial numbers...
