| Production |
| Manufacturer: | J.I. Case
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Total built: | 8372
|
| Original price: | $21,700 (1978 )
|
| J.I. Case 1175 Power |
| PTO (claimed): | 122 hp
91.0 kW
|
| Drawbar (tested): | 108.15 hp
80.6 kW
|
| PTO (tested): | 121.93 hp
90.9 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | hydraulic dry disc
|
| Cab: | Open operator station. Cab optional with available air-conditioning.
|
| Transmission: | 8-speed
|
| Photos |

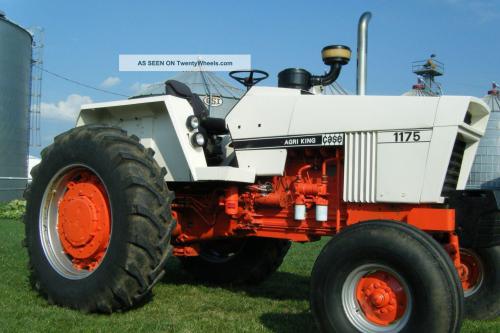

| | J.I. Case 1175 photos... |
| Tractor hitch |
| Rear Type: | II
|
| Control: | lower-link draft sensing
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.375)
|
| | 540/1000*Optional
|
| Engine RPM: | 1000@1900
|
| Dimensions & Tires |
| Weight: | 10200 lbs
4626 kg
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 55
|
| Battery volts: | 12
|
|
