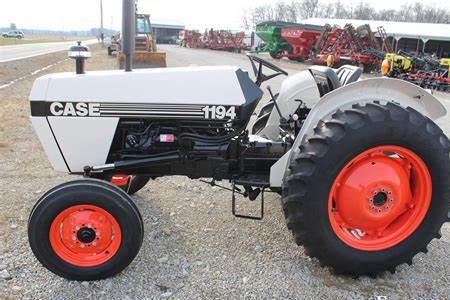

Case 1194 Tractors

Case 1194
Power: 49 hp
Date of manufacture :
1983 - 1984
Production
Manufacturer:J.I. Case
Type:Utility tractor
Factory:Meltham Mills, Huddersfield, England
Original price:$17,100 (1984 )
J.I. Case 1194 Power
Engine:49 hp
36.5 kW
PTO (claimed):43 hp
32.1 kW
Drawbar (tested):34.65 hp
25.8 kW
PTO (tested):43.09 hp
32.1 kW
J.I. Case 1194 Engine
Mechanical
Chassis:4x2 2WD
Differential lock:standard
Steering:power
Brakes:drum
Cab:Cab standard.
Transmission:12-speed synchromesh
Photos
J.I. Case 1194 photos...
Hydraulics
Type:open center
Pressure:2550 psi
175.8 bar
Valves:1
Pump flow:7 gpm
26.5 lpm
Steering flow:2 gpm
7.6 lpm
Tractor hitch
Rear Type:II/I
Rear lift (at 24"/610mm):2,180 lbs
988 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:77.5 inches
196 cm
Weight:4,650 lbs
2109 kg
Front tire:6.00-16
Rear tire:12.4-32
1194 Serial Numbers
Location:On frame, right side of engine
1983:11038050
1984:11038493

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:45
Battery CCA:420
 550 (heavy-duty)
Battery volts:12
Battery AH:96
 128 (heavy-duty)
