Case 22-40 Tractors

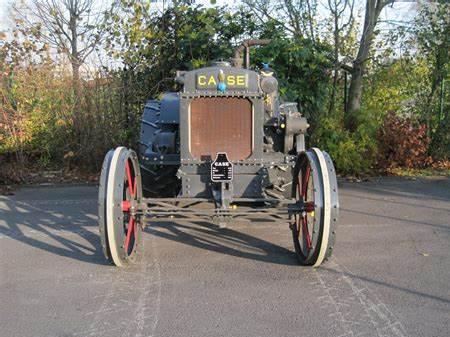

Case 22-40
Power: 44 hp[B]
Date of manufacture :
1919 - 1924
Production
Manufacturer:J.I. Case
Type:Standard-tread tractor
Factory:Racine, Wisconsin, USA
Total built:1,750
J.I. Case 22-40 Power
Drawbar (claimed):22 hp
16.4 kW
Belt (claimed):40 hp
29.8 kW
Plows:4-5 (14-inch)
Drawbar (tested):31.27 hp
23.3 kW
Belt (tested):49.97 hp
37.3 kW
J.I. Case 22-40 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:2-speed sliding gear
Photos
J.I. Case 22-40 photos...
Dimensions & Tires
Weight:10,200 lbs
4626 kg
Rear tire:56x16
Full dimensions and tires ...
Belt Pulley
Diameter:16.5 inches
41 cm
Width:8.5 inches
21 cm
RPM:850
Speed:3,669 ft/min
1118.31 meters/min
