Power: 61 hp[P] Date of manufacture : 1953 - 1956

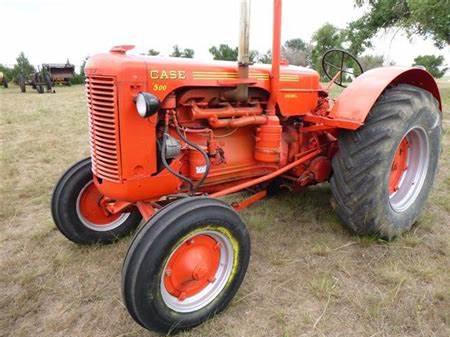

Production Manufacturer: J.I. Case Type: Standard-tread tractor Factory: Racine, Wisconsin, USA Total built: 5,985 Original price: $4,900 (1958) Mechanical Chassis: 4x2 2WD Cab: Open operator station. Transmission: 4-speed gear Photos J.I. Case 500 photos... Power Take-off (PTO) Rear PTO: independent Rear RPM: 540 Dimensions & Tires Wheelbase: 88 inches 223 cm Weight: 8,000 lbs 3628 kg Front tire: 7.50-18 Rear tire: 15-30 Full dimensions and tires ... 500 Serial Numbers Location: plate on instrument panel 1953: 5700001 1954: 8035001 1955: 8060001 1956: 8080001 1857: 8100001 how to read serial numbers... Belt Pulley Diameter: 13 inches 33 cm Width: 8.25 inches 20 cm RPM: 956 Speed: 3254 ft/min 991.82 meters/min
