Navigation: Home > Case > 511-B

Case 511-B Tractors

Case 511-B
Power: 50 hp[P]
Date of manufacture :
1958 - 1960
Production
Manufacturer:J.I. Case
Type:Row-Crop tractor
Factory:Rock Island, Illinois, USA
Total built:1,481
Original price:$3,700 (1960 )
Variants
510B:utility
511B:row-crop
J.I. Case 511-B Power
PTO (claimed):45 hp
33.6 kW
Drawbar (tested):39.05 hp
29.1 kW
Belt (tested):45.10 hp
33.6 kW
J.I. Case 511-B Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:disc
Cab:Open operator station.
Transmissions:4-speed gear
 12-speed gear

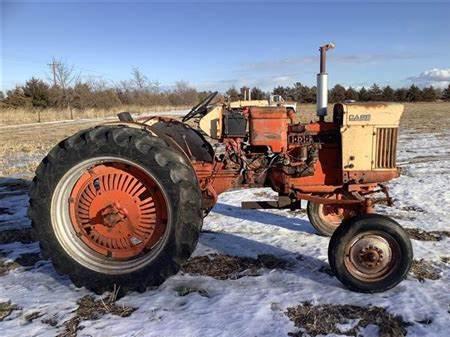

Photos
J.I. Case 511-B photos...
Capacity
Fuel:13.8 gal
52.2 L
Hydraulic system:3 gal
11.4 L
Hydraulics
Type:open center
Capacity:3 gal
11.4 L
Pressure:1200 psi
82.7 bar
Tractor hitch
Type:Case Eagle Hitch*Optional
Power Take-off (PTO)
Rear PTO:transmission
Rear RPM:540 (1.375)
Engine RPM:540@1925
Dimensions & Tires
Wheelbase:87 inches
220 cm
Weight:4721 lbs
2141 kg
Front tire:6.00-16
Rear tire:12.4-36
511-B Serial Numbers
Location:Serial number plate on instrument panel
1958:6095001
1959:6120001

how to read serial numbers...

Belt Pulley
Diameter:9.25 inches
23 cm
Width:6.4 inches
16 cm
RPM:1360
Speed:3290 ft/min
1002.79 meters/min
Electrical
Ground:positive
Battery volts:12
Battery AH:50
