| Production |
| Manufacturer: | J.I. Case
|
| Factory: | Racine, Wisconsin, USA
|
| Total built: | 3,238
|
| Original price: | $8,400 (1975 )
|
| J.I. Case 870 Power |
| Drawbar (claimed): | 62 hp
46.2 kW
|
| PTO (claimed): | 71 hp
52.9 kW
|
| Drawbar (tested): | 69.53 hp
51.8 kW
|
| PTO (tested): | 80.49 hp
60.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | differential hydraulic dry disc
|
| Cab: | Cab optional
|
| Transmissions: | 8-speed unsynchronized gear
|
| | 12-speed partial power shift
|
| Photos |

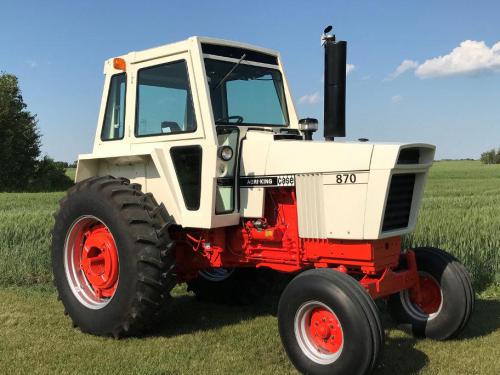

| | J.I. Case 870 photos... |
| Hydraulics |
| Pump flow: | 16 gpm
60.6 lpm
|
| Total flow: | 24 gpm
90.8 lpm
|
| Steering flow: | 8 gpm
30.3 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| | 540/1000 (1.375)
|
| Engine RPM: | 540@1900
1000@1900
|
| Dimensions & Tires |
| Wide-front Wheelbase: | 101 inches
256 cm
|
| Tricycle Wheelbase: | 94 inches
238 cm
|
| Weight: | 9,200 lbs
4173 kg
|
| Front tire: | 7.50-16
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| 870 Serial Numbers |
| 1970: | 8650001
|
| 1971: | 8674001
|
| 1972: | 8691801
|
| 1973: | 8712001
|
| 1974: | 8736601
|
| 1975: | 8770001
|
how to read serial numbers...
| |
