| Production |
| Manufacturer: | J.I. Case
|
| Type: | Standard-tread tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Original price: | $6,700 (1969 )
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power assist
|
| Brakes: | differential mechanical dry disc
|
| Cab: | Open operator station.
|
| Transmission: | 6-speed gear
|
| Photos |

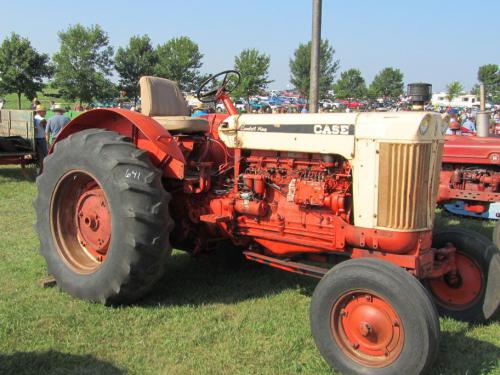

| | J.I. Case 930 photos... |
| Hydraulics |
| Type: | Dual-Control
|
| Valves: | 1 or 2
|
| Pump flow: | 15 gpm
56.8 lpm
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 84 inches
213 cm
|
| Weight: | 8,850 lbs
4014 kg
|
| Front tire: | 7.50-18
|
| Rear tire: | 15x34
|
| Full dimensions and tires ... |
| 930 Serial Numbers |
| Location: | Plate on instrument panel
|
photo of 930 serial number
| | 1960: | 8160001
|
| 1961: | 8168801
|
| 1962: | 8190001
|
| 1963: | 8208001
|
| 1964: | 8229001
|
| 1965: | 8253501
|
| 1966: | 8279001
|
| 1967: | 8306501
|
| 1968: | 8332101
|
| 1969: | 8356251
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 11.75 inches
29 cm
|
| Width: | 8.25 inches
20 cm
|
| RPM: | 1007
|
|
