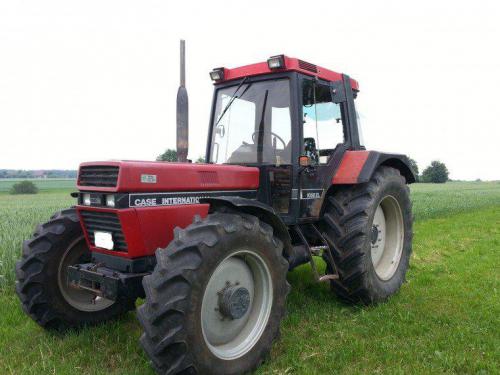

CaseIH 1056 XL Tractors

CaseIH 1056 XL
Power: 105 hp
Date of manufacture :
1985 - 1992
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Neuss, Germany
CaseIH 1056 XL Power
Engine:105 hp
78.3 kW
CaseIH 1056 XL Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Cab standard with heat. Air-conditioning optional.
Transmission:16-speed
Photos
CaseIH 1056 XL photos...
Hydraulics
Pressure:2538 psi
175.0 bar
Valves:up to 3
Pump flow:11.9 gpm
45.0 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:9532 lbs
4323 kg
 11530 lbs
5230 kg (optional)
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:103.5 inches
262 cm
4WD Wheelbase:102 inches
259 cm
Weight:9634 to 10470 pounds
Front tire:7.50-20
Rear tire:18.9R38 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:55
Battery volts:12
