Navigation: Home > CaseIH > 1255 XL

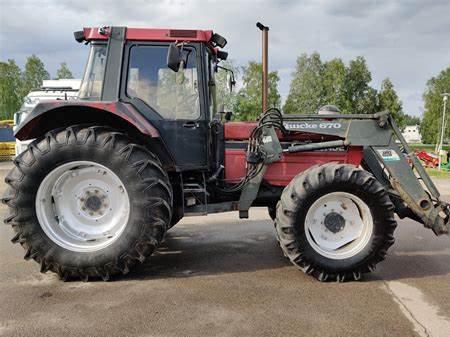

CaseIH 1255 XL Tractors

CaseIH 1255 XL
Power: 125 hp
Date of manufacture :
1985 - 1994
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Neuss, Germany
CaseIH 1255 XL Power
Engine:125 hp
93.2 kW
CaseIH 1255 XL Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Transmissions:12-speed fully synchronized
 20-speed fully synchronized
Capacity
Fuel:52.8 gal
199.8 L
Front axle:9.5 qts
9.0 L
Hydraulics
Pressure:2488 psi
171.5 bar
Valves:up to 2
Pump flow:11 gpm
41.6 lpm
Tractor hitch
Rear Type:III/II
Control:position and draft control
Rear lift:10580 lbs
4799 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:110.2 inches
279 cm
Weight:11155 to 12521 pounds
Front tire:7.50-20
Rear tire:18.9R38 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:55
Battery volts:12
