Power: 23 hp Date of manufacture : 1991 - 0000

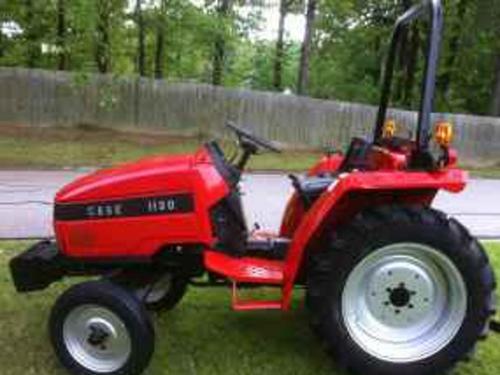

Production Distributor: CaseIH Manufacturer: Mitsubishi Type: Compact Utility tractor Original price: $13,000 (1991 ) CaseIH 1130 Power Engine: 23 hp 17.2 kW Gear PTO (claimed): 20 hp 14.9 kW Hydro PTO (claimed): 18 hp 13.4 kW CaseIH 1130 Engine Mechanical Chassis: 4x2 2WD   4x4 MFWD 4WD Steering: power Brakes: wet disc Cab: Two-post folding ROPS. Transmissions: 9-speed gear   hydrostatic Photos CaseIH 1130 photos... Hydraulics Type: open center Pressure: 2133 psi 147.1 bar Valves: 1 Pump flow: 7.2 gpm 27.3 lpm Steering flow: 3.2 gpm 12.1 lpm Tractor hitch Rear Type: I Rear lift (at ends): 2205 lbs 1000 kg Rear lift (at 24"/610mm): 1653 lbs 749 kg Power Take-off (PTO) Rear PTO: live Rear RPM: 540 Mid PTO: independent Mid RPM: 2000 Dimensions & Tires Wheelbase: 65 inches 165 cm Weight: 2,000 lbs 907 kg Front tire: 5.00-15 2WD Rear tire: 9.5-24 Electrical Ground: negative Battery volts: 12

CaseIH 985	Power: 90 hp	Date of manufacture : 1989 - 1990

CaseIH 995	Power: 104 hp	Date of manufacture : 1991 - 1994

CaseIH 1056 XL	Power: 105 hp	Date of manufacture : 1985 - 1992

CaseIH 1120	Power: 19 hp	Date of manufacture : 1991 - 0000

CaseIH 1130	Power: 23 hp	Date of manufacture : 1991 - 0000

CaseIH 1140	Power: 27 hp	Date of manufacture : 1991 - 0000

CaseIH 1255 XL	Power: 125 hp	Date of manufacture : 1985 - 1994

CaseIH 1394	Power: 77 hp	Date of manufacture : 1985 - 1988

CaseIH 1455 XL	Power: 145 hp	Date of manufacture : 1985 - 1996
