| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Original price: | $22,000 (1988 )
|
| CaseIH 1394 Power |
| Engine: | 77 hp
57.4 kW
|
| PTO (claimed): | 65 hp
48.5 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | drum
|
| Cab: | Cab with air-conditioning optional.
|
| Transmissions: | 12-speed synchromesh
|
| | 12-speed partial power shift
|
| Photos |

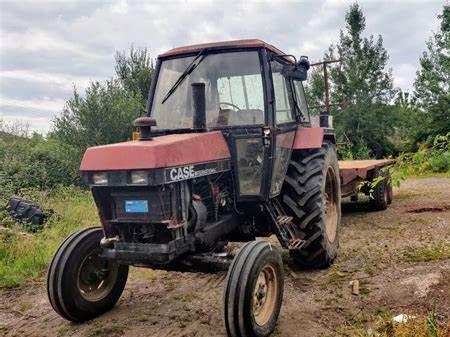

| | CaseIH 1394 photos... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2550 psi
175.8 bar
|
| Valves: | 1 to 3
|
| Total flow: | 7.7 gpm
29.1 lpm
|
| | 15.3 gpm
57.9 lpm (tandem)
|
| Steering flow: | 7.7 gpm
29.1 lpm
|
| Steering press.: | 1500 psi
103.4 bar
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift (at ends): | 5,000 lbs
2268 kg
|
| Rear lift (at 24"/610mm): | 2,990 lbs
1356 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 83 inches
210 cm
|
| 4WD Wheelbase: | 84.5 inches
214 cm
|
| Weight: | 6520 to 7160 pounds
|
| Front tire: | 7.50-16
|
| Rear tire: | 13.6-36
|
| Full dimensions and tires ... |
| 1394 Serial Numbers |
| Location: | Main frame on right side
|
| 1985: | 11502001
|
| 1986: | 11504635
|
| 1987: | 11506453
|
| 1988: | 11508682
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 45
|
| | 65 (heavy duty)
|
| Battery CCA: | 420
|
| | 550 (heavy duty)
|
| Battery volts: | 12
|
| Battery AH: | 96
|
| | 128 (heavy duty)
|
|
