| Production |
| Manufacturer: | CaseIH
|

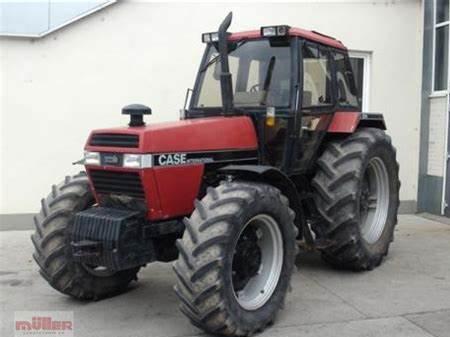

| CaseIH 1694 Power |
| Engine: | 112 hp
83.5 kW
|
| PTO (claimed): | 99 hp
73.8 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | disc
|
| Transmission: | 12-speed partial power shift
|
| Hydraulics |
| Pressure: | 2600 psi
179.3 bar
|
| Rear valves: | 1 to 3
|
| Total flow: | 10.5 gpm
39.7 lpm
|
| | 20.1 gpm
76.1 lpm (tandem)
|
| Steering flow: | 7.7 gpm
29.1 lpm
|
| Steering press.: | 1850 psi
127.6 bar
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at ends): | 7,440 lbs
3374 kg
|
| Rear lift (at 24"/610mm): | 6,290 lbs
2853 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 100 inches
254 cm
|
| Weight: | 9,580 lbs
4345 kg
|
| Front tire: | 13.6-28
|
| Rear tire: | 16.9-38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 45
|
| | 65 (heavy duty)
|
| Battery CCA: | 420
|
| | 550 (heavy duty)
|
| Battery volts: | 12
|
| Battery AH: | 96
|
| | 128 (heavy duty)
|
|
