Power: 94 hp Date of manufacture : 1990 - 1997

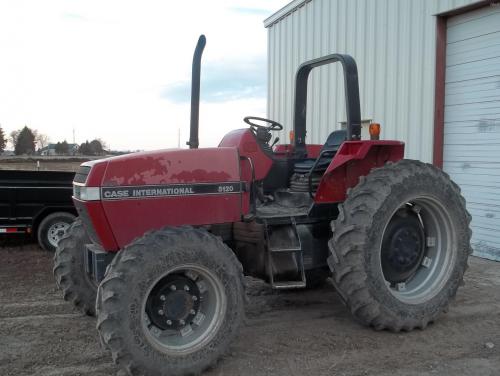

Production Manufacturer: CaseIH Factory: Neuss, Germany CaseIH 5120 Power Engine: 94 hp 70.1 kW PTO (claimed): 77 hp 57.4 kW CaseIH 5120 Engine Mechanical Chassis: 4x2 2WD   4x4 MFWD 4WD Final drives: planetary Steering: power Brakes: wet disc Cab: Two-post ROPS. Cab optional with air-conditioning. Transmissions: 16-speed power shuttle   16-speed four-speed power shift   24-speed creeper Capacity Fuel: 44.9 gal 169.9 L Hydraulic system: 20.1 gal 76.1 L Hydraulics Capacity: 20.1 gal 76.1 L Pressure: 2756 psi 190.0 bar Pump flow: 20.7 gpm 78.3 lpm Tractor hitch Rear Type: II Control: electro-hydraulic lower-link draft sensing Rear lift (at 24"/610mm): 7700 lbs 3492 kg Front Hitch: II*Optional Front lift (at 24"/610mm): 5200 lbs 2358 kg Power Take-off (PTO) Rear PTO: independent Clutch: hydraulic wet disc Rear RPM: 540/1000 (1.375) Engine RPM: 540@1870 1000@2200 Dimensions & Tires 2WD Wheelbase: 94.3 inches 239 cm 4WD Wheelbase: 92.3 inches 234 cm Weight: 8620 to 10362 pounds Front tire: 13.6R28 Rear tire: 16.9R38 Full dimensions and tires ... Electrical Charging system: alternator Charging amps: 65 Battery volts: 12 Battery AH: 105

CaseIH 4694	Power: 261 hp	Date of manufacture : 1984 - 1987

CaseIH 4894	Power: 300 hp	Date of manufacture : 1984 - 1987

CaseIH 4994	Power: 400 hp	Date of manufacture : 1984 - 1987

CaseIH 5120	Power: 88 hp	Date of manufacture : 1990 - 1991

CaseIH 5120	Power: 94 hp	Date of manufacture : 1990 - 1997

CaseIH 5130	Power: 99 hp	Date of manufacture : 1990 - 1991

CaseIH 5130	Power: 105 hp	Date of manufacture : 1990 - 1997

CaseIH 5140	Power: 108 hp	Date of manufacture : 1990 - 1991

CaseIH 5140	Power: 117 hp	Date of manufacture : 1990 - 1997
