CaseIH 5130 Tractors

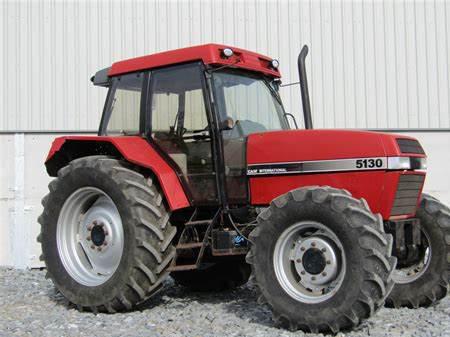

CaseIH 5130
Power: 105 hp
Date of manufacture :
1990 - 1997
Production
Manufacturer:CaseIH
Factory:Neuss, Germany
CaseIH 5130 Power
Engine:105 hp
78.3 kW
PTO (claimed):86 hp
64.1 kW
CaseIH 5130 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Steering:power
Brakes:wet disc
Cab:Two-post ROPS. Cab optional with air-conditioning.
Transmissions:16-speed power shuttle
 16-speed four-speed power shift
 24-speed creeper
Photos
CaseIH 5130 photos...
Capacity
Fuel:44.9 gal
169.9 L
Hydraulic system:20.1 gal
76.1 L
Hydraulics
Capacity:20.1 gal
76.1 L
Pressure:2756 psi
190.0 bar
Pump flow:20.7 gpm
78.3 lpm
Tractor hitch
Rear Type:II
Control:electro-hydraulic lower-link draft sensing
Rear lift (at 24"/610mm):7700 lbs
3492 kg
Front Hitch:II*Optional
Front lift (at 24"/610mm):5200 lbs
2358 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540/1000 (1.375)
Engine RPM:540@1870
1000@2200
Dimensions & Tires
2WD Wheelbase:103.7 inches
263 cm
4WD Wheelbase:101.8 inches
258 cm
Weight:9458 to 10582 pounds
Front tire:14.9R24
Rear tire:16.9R38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:65
Battery volts:12
Battery AH:105
