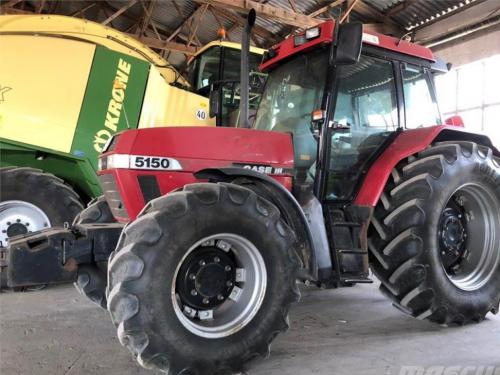

CaseIH 5150 Tractors

CaseIH 5150
Power: 132 hp
Date of manufacture :
1992 - 1997
Production
Manufacturer:CaseIH
Factory:Neuss, Germany
CaseIH 5150 Power
Engine:132 hp
98.4 kW
PTO (claimed):112 hp
83.5 kW
CaseIH 5150 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:planetary
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmissions:16-speed four-speed power shift
 24-speed creeper
Photos
CaseIH 5150 photos...
Capacity
Fuel:44.9 gal
169.9 L
Hydraulic system:20.1 gal
76.1 L
Hydraulics
Capacity:20.1 gal
76.1 L
Pressure:2756 psi
190.0 bar
Pump flow:20.7 gpm
78.3 lpm
Tractor hitch
Rear Type:II
Front Hitch:II*Optional
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540/1000 (1.375)
Engine RPM:540@1880
1000@2200
Dimensions & Tires
Wheelbase:101.8 inches
258 cm
Weight:12346 lbs
5600 kg
Front tire:16.9x24
Rear tire:18.4x38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:65
Battery volts:12
Battery AH:105
