| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $95,000 (1990)
|
| CaseIH 9150 Power |
| Engine: | 280 hp
208.8 kW
|
| PTO (claimed): | 245 hp
182.7 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydrostatic power
|
| Cab: | Cab standard.
|
| Transmission: | 12-speed full power shift
|
| Photos |

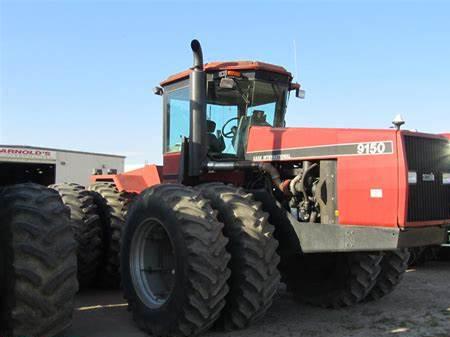

| | CaseIH 9150 photos... |
| Capacity |
| Fuel: | 170 gal
643.5 L
|
| Hydraulic system: | 18 gal
68.1 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 18 gal
68.1 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 3 to 4
|
| Total flow: | 27 gpm
102.2 lpm
|
| Tractor hitch |
| Optional Rear Type: | III
|
| Rear lift: | 12,750 lbs
5783 kg
|
| Power Take-off (PTO) |
| Optional Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 130 inches
330 cm
|
| Weight: | 23,000 lbs
10432 kg
|
| Front tire: | 20.8-38
|
| Rear tire: | 20.8-38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
