| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $128,000 (1990)
|

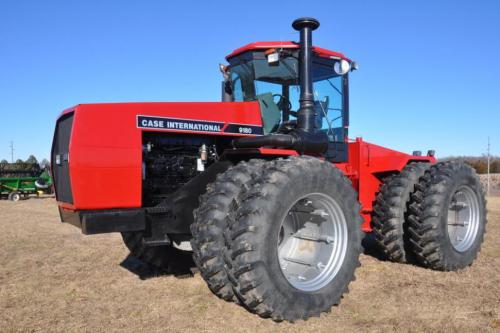

| CaseIH 9180 Power |
| Engine: | 375 hp
279.6 kW
|
| PTO (claimed): | 340 hp
253.5 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydrostatic power
|
| Cab: | Cab standard.
|
| Transmission: | 12-speed full power shift
|
| Capacity |
| Fuel: | 250 gal
946.3 L
|
| Hydraulic system: | 26 gal
98.4 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 26 gal
98.4 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 3 to 4
|
| Total flow: | 40 gpm
151.4 lpm
|
| Tractor hitch |
| Optional Rear Type: | IV
|
| Rear lift: | 14,000 lbs
6350 kg
|
| Power Take-off (PTO) |
| Optional Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 141.3 inches
358 cm
|
| Weight: | 28,000 lbs
12700 kg
|
| Front tire: | 24.5-32
|
| Rear tire: | 24.5-32
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
