Power: 525 hp Date of manufacture : 1987 - 0000

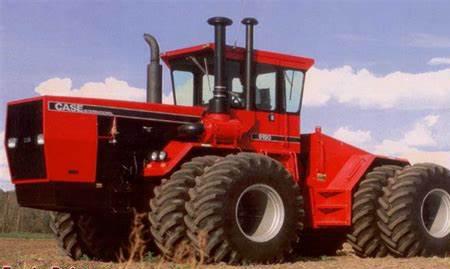

Production Manufacturer: CaseIH Type: Four-wheel Drive (4WD) tractor Factory: Fargo, North Dakota, USA Original price: $191,000 (1987) CaseIH 9190 Power Engine: 525 hp 391.5 kW Drawbar (claimed): 420 hp 313.2 kW CaseIH 9190 Engine Mechanical Chassis: 4x4 articulated 4WD Steering: hydrostatic power articulated Brakes: disc Cab: Cab standard with air-conditioning and AM/FM cassette radio. Transmission: 24-speed partial power shift Capacity Fuel: 385 gal 1457.2 L Hydraulic system: 26 gal 98.4 L Hydraulics Type: open center Capacity: 26 gal 98.4 L Pressure: 2250 psi 155.1 bar Valves: 4 or 5 Total flow: 38 gpm 143.8 lpm Dimensions & Tires Wheelbase: 150 inches 381 cm Weight: 40,720 lbs 18470 kg Front tire: 30.5-32 Rear tire: 30.5-32 Full dimensions and tires ... 9190 Serial Numbers 1987: 17900844 how to read serial numbers... Electrical Ground: negative

CaseIH 9130	Power: 220 hp	Date of manufacture : 1986 - 1990

CaseIH 9150	Power: 280 hp	Date of manufacture : 1986 - 1990

CaseIH 9170	Power: 335 hp	Date of manufacture : 1986 - 1990

CaseIH 9180	Power: 375 hp	Date of manufacture : 1986 - 1990

CaseIH 9190	Power: 525 hp	Date of manufacture : 1987 - 0000

CaseIH 9210	Power: 200 hp	Date of manufacture : 1990 - 1995

CaseIH 9230	Power: 235 hp	Date of manufacture : 1990 - 1995

CaseIH 9240	Power: 235 hp	Date of manufacture : 1990 - 1995

CaseIH 9250	Power: 300 hp	Date of manufacture : 1990 - 1995
