| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $116,000 (1995)
|
| Variants |
| 9260: | four-wheel steer
|
| 9250: | articulated
|

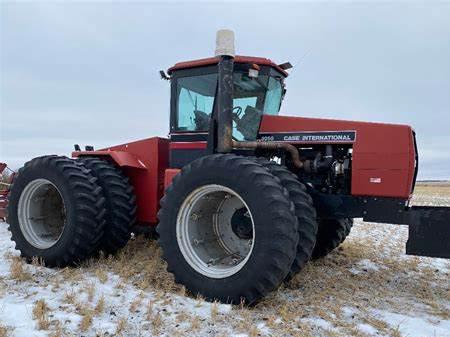

| CaseIH 9250 Power |
| Engine: | 300 hp
223.7 kW
|
| PTO (claimed): | 266 hp
198.4 kW
|
| Drawbar (tested): | 237.29 hp
176.9 kW
|
| PTO (tested): | 271.01 hp
202.1 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydrostatic power with articulation and front-axle steering
|
| Brakes: | integrated hydraulic caliper disc
|
| Cab: | Cab standard with air-conditioning. Optional deluxe cab adds side and rear windowwipers plus internal storage compartments.
|
| Transmission: | 12-speed full power shift
|
| Photos |
| | CaseIH 9250 photos... |
| Capacity |
| Fuel: | 200 gal
757.0 L
|
| Hydraulic system: | 18 gal
68.1 L
|
| Hydraulics |
| Type: | closed center load sensing, pressure compensating
|
| Capacity: | 18 gal
68.1 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 4
|
| Total flow: | 27 gpm
102.2 lpm
|
| Tractor hitch |
| Optional Rear Type: | III
|
| Control: | optional
|
| Rear lift: | 12,750 lbs
5783 kg
|
| Power Take-off (PTO) |
| Optional Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Engine RPM: | 1000@2098
|
| Dimensions & Tires |
| Wheelbase: | 131 inches
332 cm
|
| Weight: | 30,060 lbs
13635 kg
|
| Front tire: | 20.8-38
|
| Rear tire: | 20.8-38
|
| Full dimensions and tires ... |
| 9250 Serial Numbers |
| Location: | Under the left-side steps on front fender
|
| 1990: | JCB0004600
|
| 1991: | JCB0026501
|
| 1992: | JCB0028400
|
| 1993: | JCB0030500
|
| 1994: | JEE0031773
|
| 1995: | JEE0032808
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
